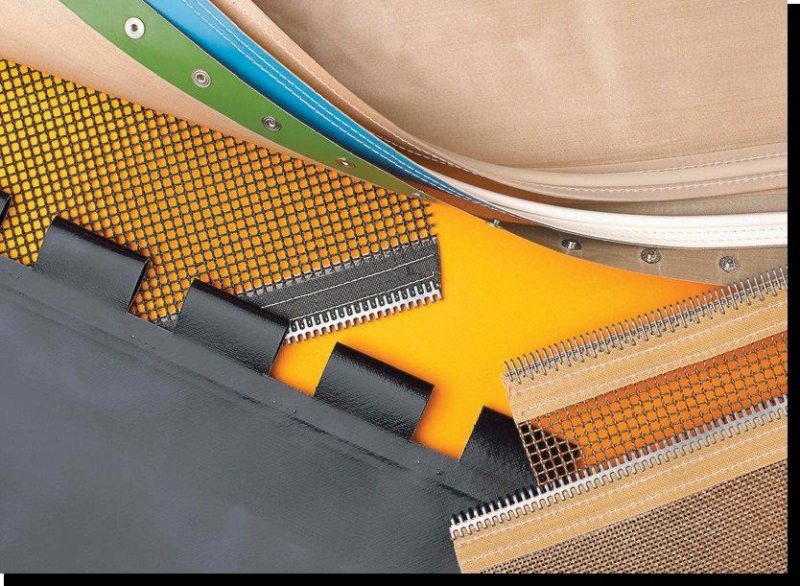

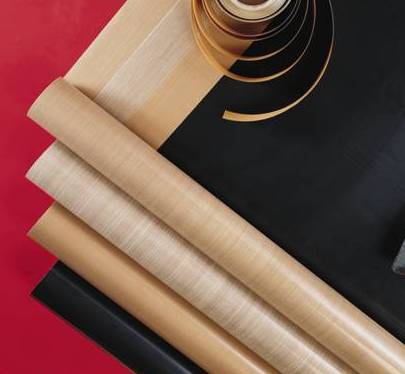

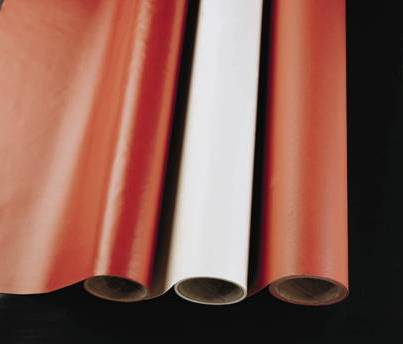

Glass-teflon fabrics, teflon sheets and strips

Reko Ltd supplies the textile fabrics (teflon foils and bands) with the two-side teflon coating of various thickness values for a vast variety of application such as the cutting-outs, footages, endless fasted belts etc.

Variants:

   dopravní pásy, dopravníky plane up to 2.4 m width,

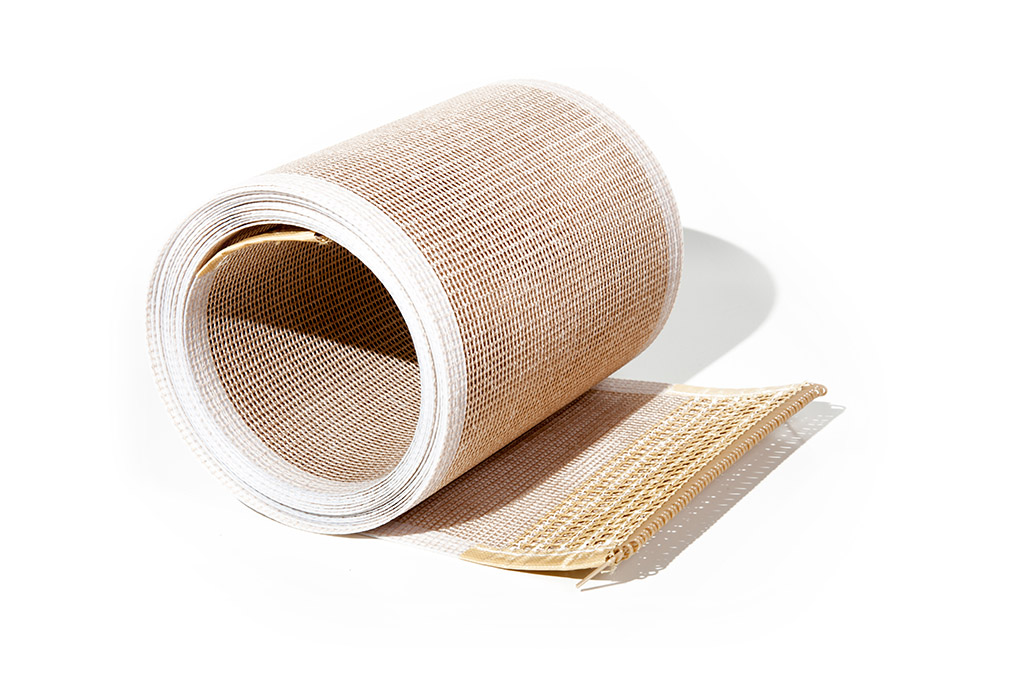

   dopravní pásy, dopravníky net-shaped up to 4.8 m width,
   dopravní pásy, dopravníky self-adhesive up 2.4 m width.

Jointing of this materials: weld, needlecraft, clamps.

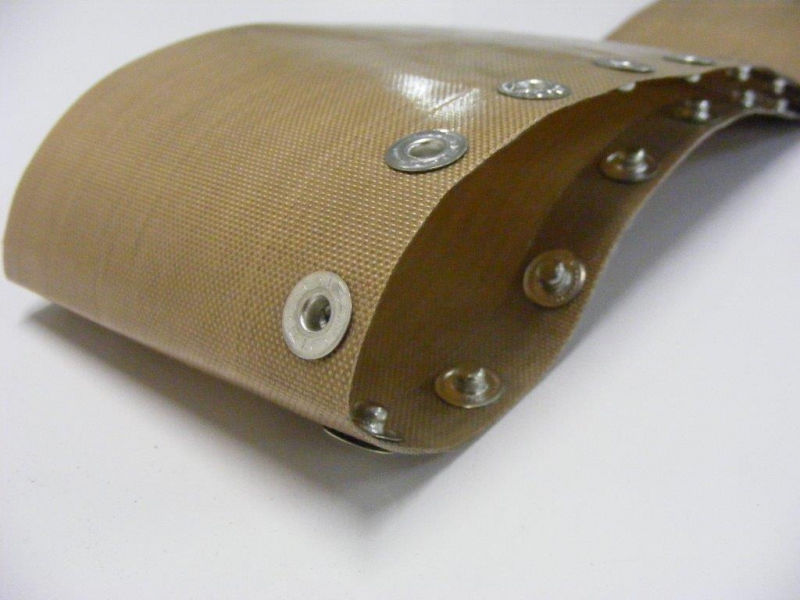

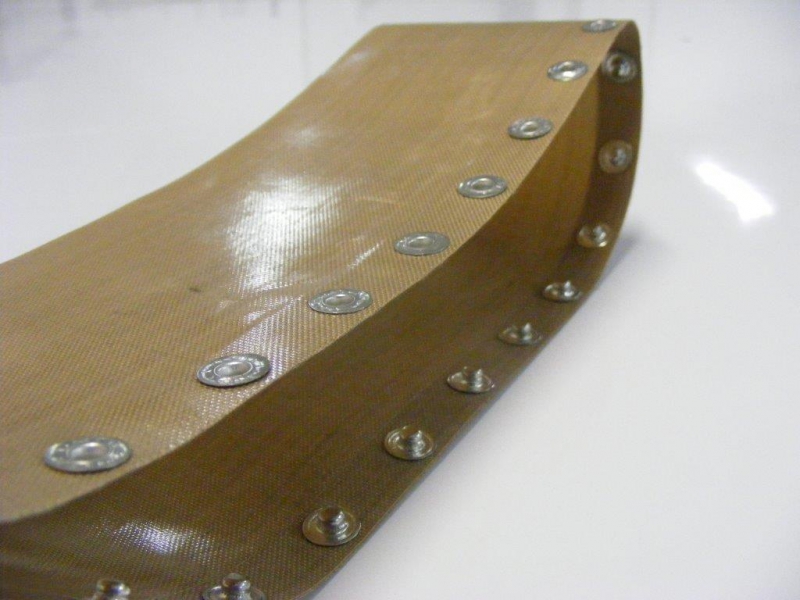

Outfit: reinforcement of edges - e.g. by rivets etc.

Metallic splice

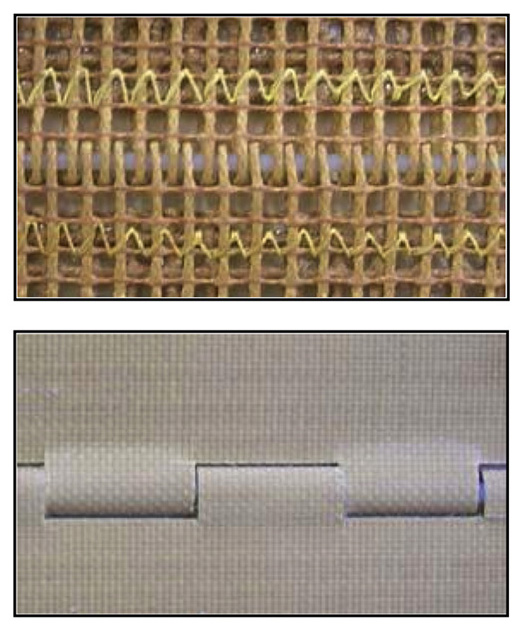

Non-metallic splice

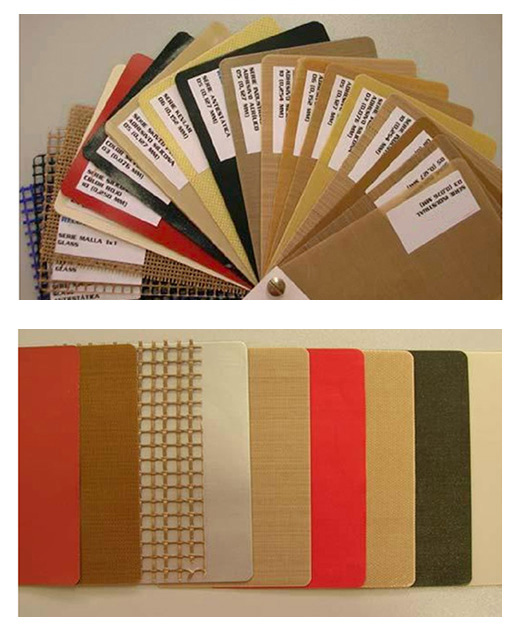

Sample cards

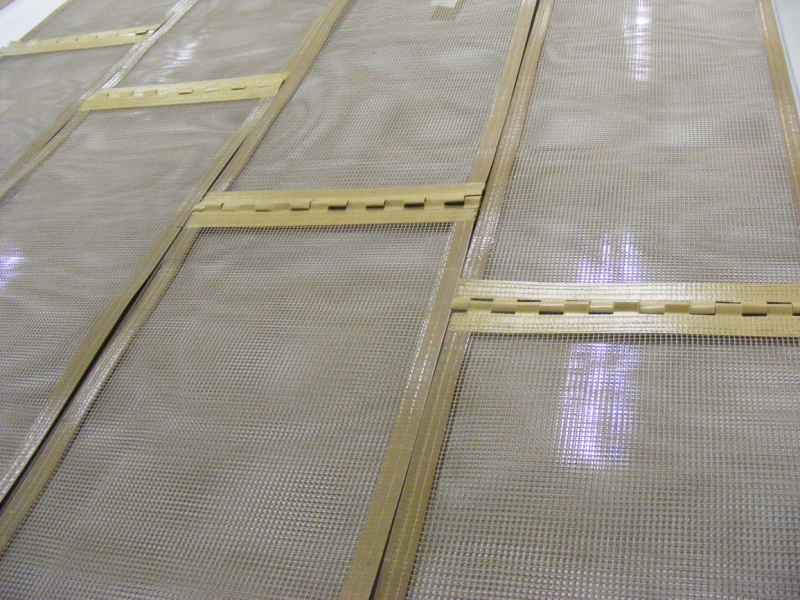

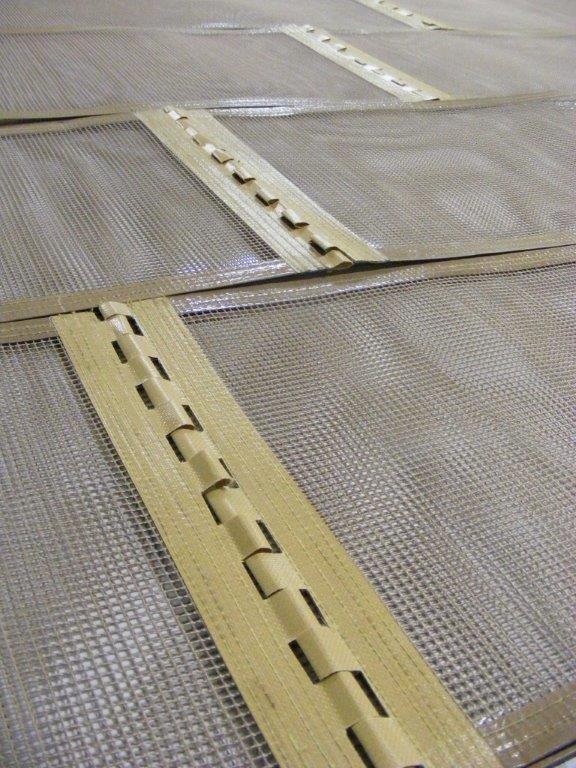

Endless splices

Edge reinforcements

Tracking and guiding devices

Properties:

    dopravní pásy, dopravníky anti-adhesive surface
    dopravní pásy, dopravníky health harmlessness
    dopravní pásy, dopravníky thermic resistance  260 °C (at short term up to 300 °C)
    dopravní pásy, dopravníky UV, UHF irradiation resistance
    dopravní pásy, dopravníky excellent slipping
    dopravní pásy, dopravníky tensile strength
    dopravní pásy, dopravníky alkali-and-concentrated acid-resistant
    dopravní pásy, dopravníky low-temperature resistance up to  -70 °C
    dopravní pásy, dopravníky alkali-and-concentrated acid-resistant

Due to the above-listed properties, these products are of an endless application scale:

Packaging industry – welding of packings, packing of ready meals, production lines for baking, making hamburgers, vacuum packing production shops etc.

Textile industry – stiffers of collars, ironing machines, textile colouring, drying, marking drawings.

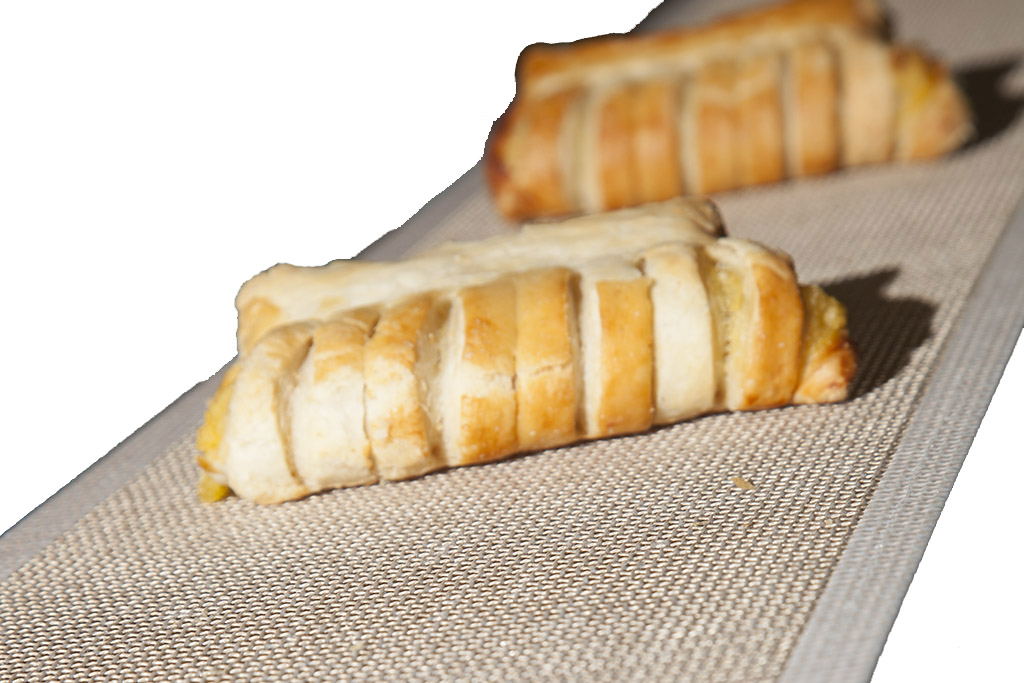

Bakery industry –fat-free baking process, pastry, pizza, bread, confectionery (the 7039-1 DARK system as specially developed).

Vacuum drying – coffee, milk etc.káva, mléko atd. The UV or microwave-based drying.

Rubber industry – at short-term up to 300 °C.

Furniture industry – laminating, glueing.

Plastic windows and doors-related industry – simple cleaning, non-adhesive wall decking (The TACWELD 69 system as specially developed).

Reko Ltd supplies also the self-adhering „TAC TAPES“ in various widths and thicknesses as requested by a customer.  PTFE meshed sieve-fabrics – fro drying, colouring, curing and marking drawings. Mesh loops are 2x2 mm, 4x4 mm and 6x6 mm sized. The other types of materials will be supplied by Reko Ltd as based on a specific requrest.

Shaft diameters for PTFE
Band thickness
Band width (mm)
6-300
>300-750
>750-1500
>1500
0.12-0.25
75
75
100
150
0.25-0.48
75
75
100
150
0.48-0.63
100
150
150
200
0.67-0.77
100
150
200
250
