Elevator - bucket belts
THE CZECH-MADE PRODUCT FOR A GROUND FLOOR PRICE IS ONCE AGAIN AVAILABLE ON THE MARKET !!!
(original products from the FATRA Napajedla JSC)
Czech-made production of elevator-related - endless chain belts - FATRA-made original types:
800/4 EP XE
1000/5 EP XE
1000/6 EP XE
LOWER PRICES AND IN THE LONG TERM PROVED QUALITY AS COMPARED TO THE PRODUCTS OF FOREING MANUFACTURE !!!
SECURE IN TIME YOUR REQUIREMENTS !!!
YET NOW DO NOT HESITATE TO APPROACH OUR COMPANY
ELEVATOR-RELATED ENDLESS CHAIN BELTS
| 4T 32 V3-V3 | 5T 40 V3-V3 | 6T 48 V3-V3 | |
| Historic label | 800/4 EP XE | 1000/5 EP XE | 1200/6 EP XE |
| Lower side of belt | PVC 0,3 mm | ||
| Hardness | 60 Sh A | ||
| Colour | sand | ||
| Form pad | 4x PES kord | 5x PES kord | 6x PES kord |
| Upper side | PVC 0,3 mm | ||
| Hardness | 60 Sh A | ||
| Total thickness of belt | 5,5 mm | 7 mm | 8,5 mm |
| Weight | 6,8 kg/m2 | 8.5 kg/m2 | 10 kg/m2 |
| Extrapolation of 1% | 32 N/mm | 40 N/mm | 48 N/mm |
| Max. load | 50 N/mm | 70 N/mm | 88 N/mm |
| Temperature endureance | -10 °C up to +60° C | ||
| Min. Ø roll | 200 mm | 280 mm | 350 mm |
| For return pipes | 350 mm | 450 mm | 600 mm |
| Koef. friction to steel | 0,4 | ||
| Permanent. antistatik | yes | ||
| Max. production width | 1400 mm | ||

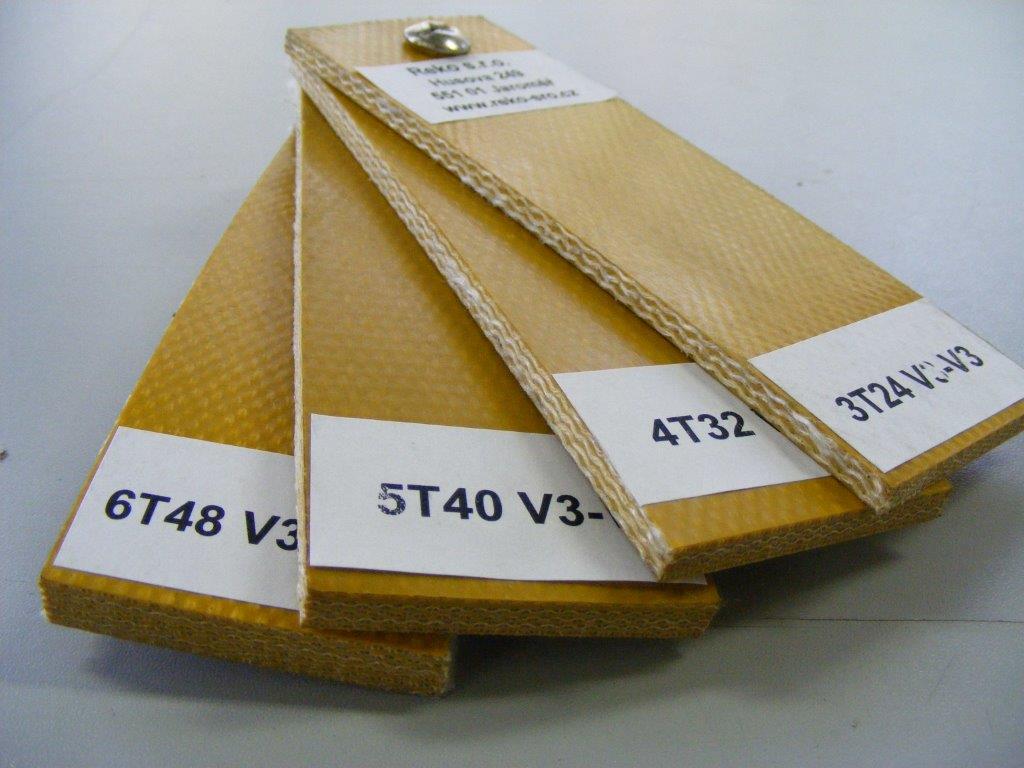

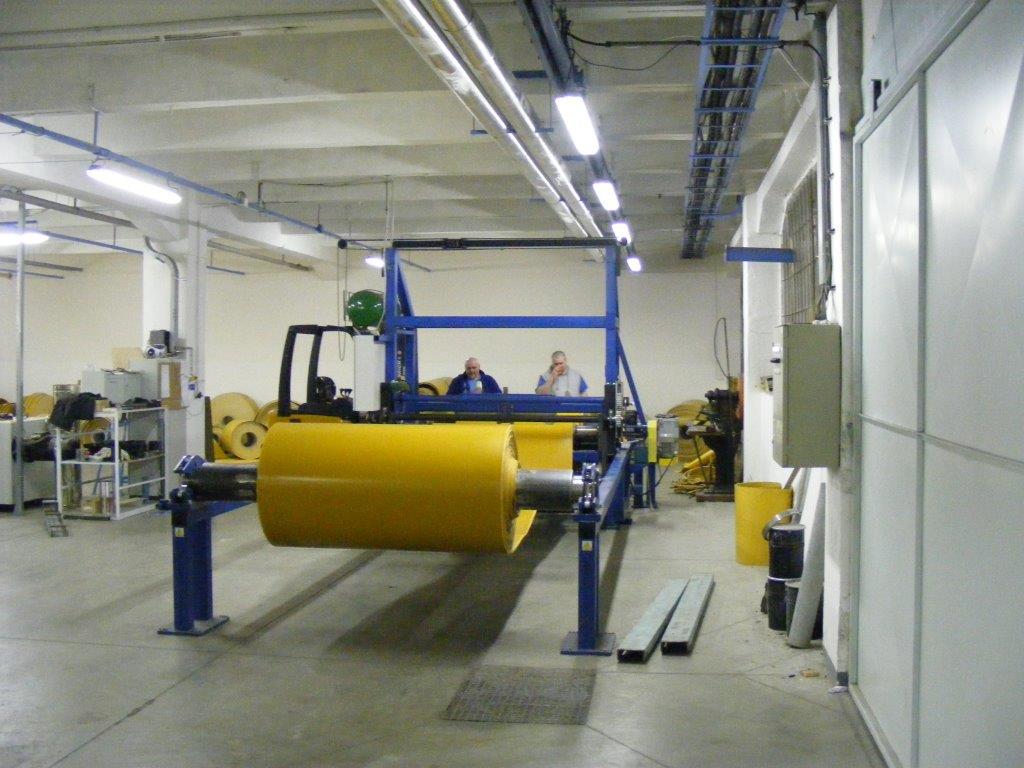

Photos
